Potensic PTD-1 Controller: No Fuss — Just Fly

Xavier Arthur
Nov 5
3 min read

Updated: Nov 16

Introducing the PTD-1 Controller for the Potensic Atom 2 Drone

Potensic PTD-1 drone controller with built-in screen next to Atom 2 drone — My Hands-on Real World Review

Instant Value: Why the Potensic PTD-1 controller Changes Everything

The Potensic PTD-1 controller introduces a built-in screen that eliminates the need for smartphones, tablets, and tangled setups. Whether you're a creator, drone instructor, inspector, or traveler, this controller is built for speed, clarity, and independence.

Watch the full video review

Everything covered here from A to Z

Screen Specs & Performance

700 nits brightness - readable even in direct sunlight
1080p resolution with ultra-low 120ms latency
Responsive touchscreen: swipe menus, tap-to-focus
Anti-glare coating and wide viewing angles

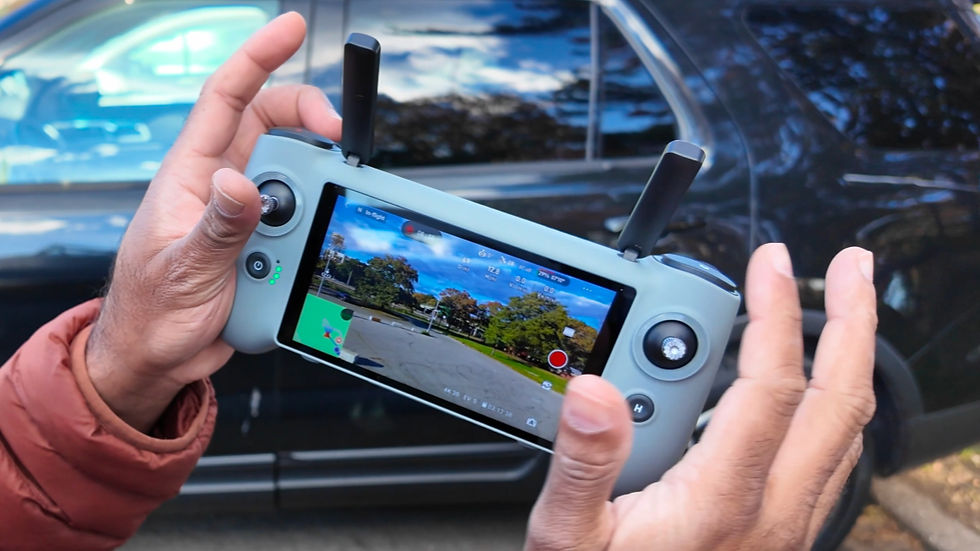

Hands holding Potensic PTD-1 controller with bright 5.5 inch display visible outdoors — 5.5" Bright Display Outdoors

Controller Build & Ergonomics

The PTD-1 feels premium in the hand, with a solid grip, an intuitive layout, and customizable buttons.

Back view of Potensic PTD-1 controller showing ergonomic grip and customizable buttons — Ergonomic grip contours

One-handed takeoff is smooth and reliable
Easy One-handed takeoff
Function buttons are fully programmable

Gimbal wheel, record button, and programmable C1 button
Zoom wheel, shutter button, and programmable C2 button
Weighs ~450g, portable and balanced
Dedicated wheels for gimbal controls and zoom

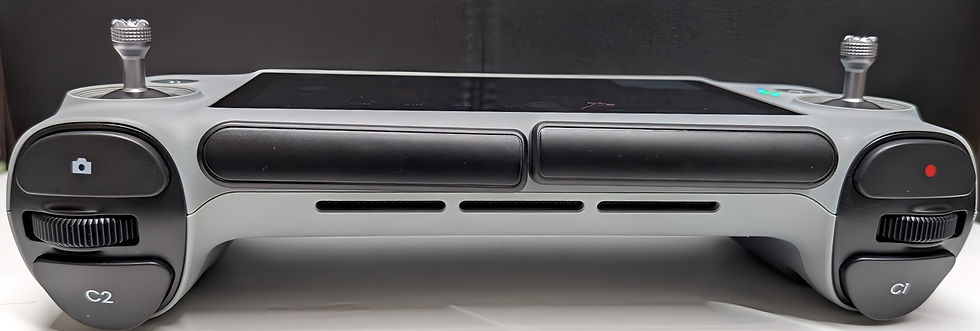

Six controls at fingertips on PTD-1 controller showing joysticks and function buttons — Six controls at your fingertips

Live View & Flight Interface

Real-time FPV feed with crisp clarity (120ms latency)
On-screen telemetry: battery, GPS, signal, flight modes
Map view, and return to home.
All flight stats are always visible
Watch the Unboxing Video
See everything that comes in the box!
Bonus: screen recording and sharing features

Potensic Smart app interface showing Academy, Album, and Me tabs with Fly Now button — Swipe down for the screen recording and screenshot features

Battery & Charging

6400mAh battery = up to 3 hours of use
27W fast charging: 90% in 1h 25m
Can charge while flying (USB-C setup)

PTD-1 controller showing USB-C charging port, SD card slot, and 1/4 inch mounts — 1/4"-20 Mounts for lanyard and tripod mounts between USB-C charging port and SD card mount

Storage & Connectivity

32GB built-in storage, and expandable storage via SD card
Toggle easily between internal and external storage
Supports firmware updates directly from the controller using WiFi
Watch the full Unboxing Video HERE

Setup & Compatibility

Compatible with Potensic Atom 2
Setup time: under 2 minutes from unboxing to flight

PTD-1 controller connected to Potensic Atom 2 drone showing live feed in device list — My device Menu

Visible Rear Heat Sink

The PTD-1 controller features a prominent metal heat sink on the back, designed to dissipate heat from the internal processor and screen passively. This is especially important when flying in hot environments or using the screen at full brightness.

External Heat Sink

Potensic PTD-1 Controller Range and Specs

Maximum Transmission Range: Up to 10 km (6.2 miles) in open environments under optimal conditions.
Signal Technology: Featuring PixSync 4.0 technology, enjoy ultra-smooth, real-time 1080p/30fps FHD video
Interference Conditions: The remote controller has adjustable antennas for optimal signal strength.

Fingers won't block the screen or antennas with adjustable antenna design on PTD-1 — Your fingers won't block the screen or antennas when flying

Tips & Drawbacks

✅ Tip: Use a 5.5" matte screen protector to reduce glare
❌ Drawback: Not compatible with Atom SE or Atom drones
❌ No HDMI out
❌ No third-party app support in the menu

Price & Value

Potensic PTD-1 controller displaying live mountain scenery next to Atom 2 foldable drone — Standard Kit with PTD-1

Fly More Combo with PTD-1 controller, batteries, and folded Atom 2 drone — Fly More Combo with PTD-1

Final Verdict

The Potensic PTD-1 controller is a must-have for independent drone shooters. With a bright screen, strong build, and no phone required, it delivers a cleaner, faster, and more immersive flying experience.
